Hydraulics
TTS
- 180/360-degree multi-position hose couplers prevents hose interference on all jobs
- Made of highest quality materials (aluminum and steel alloys) for durability and longevity
- Manufactured and assembled in the U.S.A. with supreme quality control
-
Max Torque

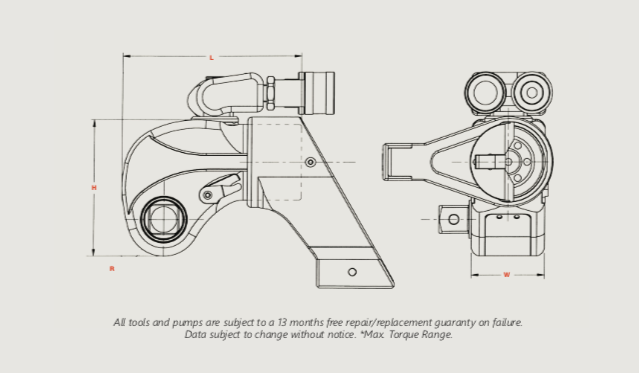

All tools and pumps are subject to a 13 months free repair/replacement guaranty on failure. Data subject to change without notice. *Max. Torque Range.
| Model | H (Inch) | W (Inch) | L (Inch) | R (Inch) | Drive (Inch) | Weight (Lbs) | Torque (ft-lbs) MIN | Torque (ft-lbs) MAX |
|---|---|---|---|---|---|---|---|---|
| TTS-.7 | 3.00 (76.20 mm) | 1.62 (41.15 mm) | 3.96 (100.58 mm) | 0.81 (20.57 mm) | 3⁄4" (19.05 mm) | 2.70 (1.23 Kg) | 123 (166.77 Nm) | 822 (1114.48 Nm) |
| TTS-1 | 3.66 (92.96 mm) | 1.97 (50.04 mm) | 4.88 (123.95 mm) | 0.98 (24.89 mm) | 3⁄4" (19.05 mm) | 3.95 (1.79 Kg) | 201 (272.52 Nm) | 1,340 (1816.80 Nm) |
| TTS-3 | 4.88 (123.95 mm) | 2.63 (66.80 mm) | 6.34 (161.04 mm) | 1.31 (33.27 mm) | 1" (25.40 mm) | 8.30 (3.77 Kg) | 484 (656.22 Nm) | 3,230 (4379.29 Nm) |
| TTS-5 | 5.85 (148.59 mm) | 3.16 (80.26 mm) | 7.61 (193.29 mm) | 1.57 (39.88 mm) | 1" (25.40 mm) | 14.20 (6.44 Kg) | 838 (1136.18 Nm) | 5,589 (7577.67 Nm) |
| TTS-10 | 7.32 (185.93 mm) | 3.95 (100.33 mm) | 9.51 (241.55 mm) | 1.96 (49.78 mm) | 1 1⁄2" (38.10 mm) | 24.80 (11.25 Kg) | 1,728 (2342.85 Nm) | 11,519 (15617.67 Nm) |
| TTS-15 | 8.06 (204.72 mm) | 4.38 (111.25 mm) | 10.55 (267.97 mm) | 2.18 (55.37 mm) | 2 1⁄2" (63.50 mm) | 36.00 (16.33 Kg) | 2,388 (3237.69 Nm) | 15,920 (21584.62 Nm) |
| TTS-20 | 8.87 (225.30 mm) | 4.73 (120.14 mm) | 11.41 (289.81 mm) | 2.36 (59.94 mm) | 2 1⁄2" (63.50 mm) | 43.40 (19.69 Kg) | 2,964 (4018.64 Nm) | 19,757 (26786.90 Nm) |
| TTS-35 | 10.79 (274.07 mm) | 5.82 (147.83 mm) | 14.03 (356.36 mm) | 2.90 (73.66 mm) | 2 1⁄2" (63.50 mm) | 77.45 (35.13 Kg) | 5,564 (7543.77 Nm) | 37,095 (50294.07 Nm) |
-
Catalog TORC
